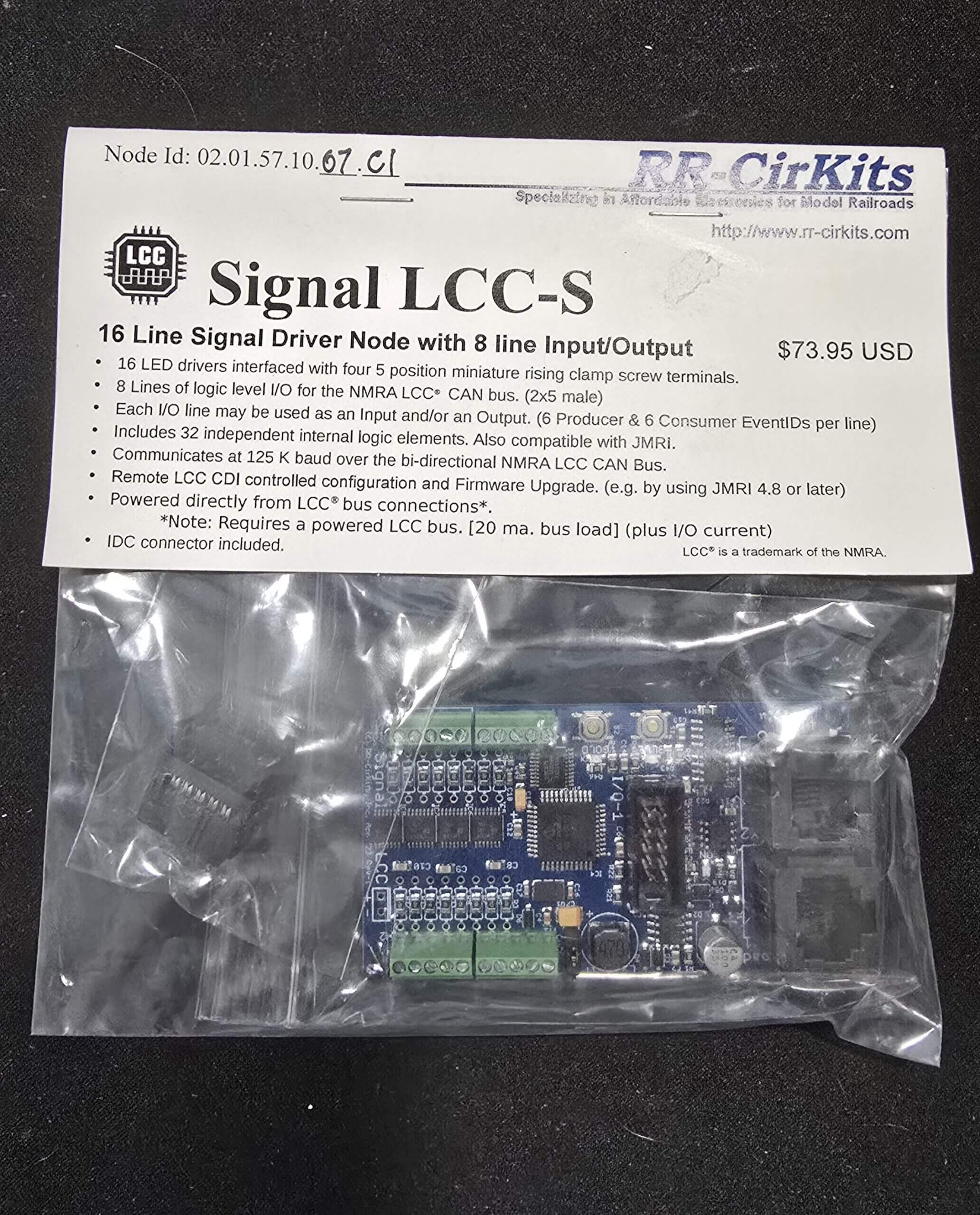

RR Cirkits Signal LCC-S

RR Cirkits Signal LCC-S – 16 Line Signal Driver Node with 8 line Input/Output

• 16 LED drivers interfaced with four 5 position miniature rising clamp screw terminals.
• 8 Lines of logic level I/O for the NMRA LCC Can bus. (2×5 male)
• Each I/O line may be used as an Input and/or an Output. (6 Producer & 6 Consumer Event IDs per line)
• Includes 32 independent internal logic elements. Also compatible with JMRI.
• Communicates at 125K baud over the bi-directional NMRA LCC Can bus.
• Remote LCC CDI controlled configuration and Firmware Upgrade. (e.g. by using JMRI 4.8 or later)
• Powered directly from the LCC bus connections*.
  • *Note: Requires a powered LCC bus. [20 ma. bus load] (plus I/O current)
• IDC connector included
